USB 10A 12V-24V Solar Panel Regulator Charge Controller

SKU CH Solar 10A[1301 B]
Original price $17.00 - Original price $17.00
Original price
$17.00
$17.00 - $17.00
Current price $17.00

90 Days Money Back Guarantee

Spend Over $70 For Free Shipping

Free Returns, 3 Year Warranty and more with PlatinumClub*

*Join PlatinumClub at $2.95/month HERE. Cancel Anytime.

2pm Same Day Dispatch

Order before 2pm and we promise to dispatch on Same Day ! SYD, MEL, BRI, ADL orders are delivered within 1-2 days. Others within 2-5 days.

Features:
  • Solar Panel 12V/24V 10A/20A/30A
  • Build-in industrial micro controller.

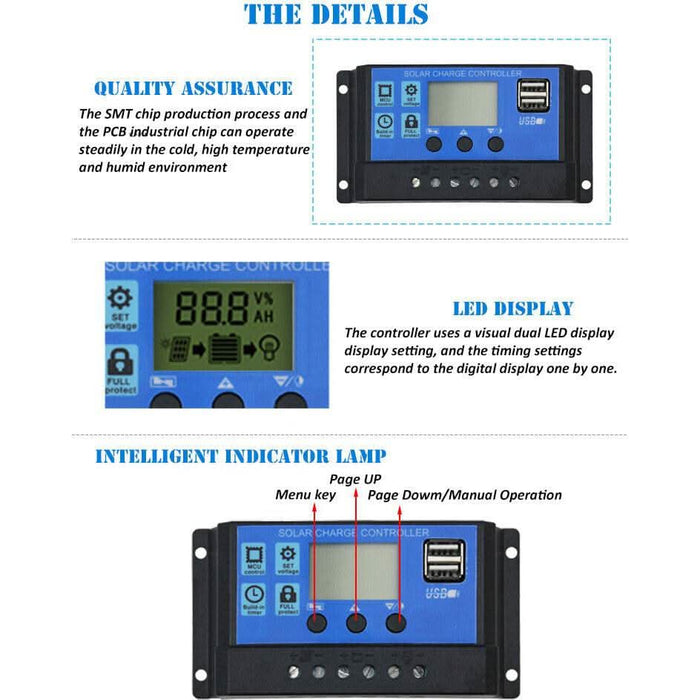

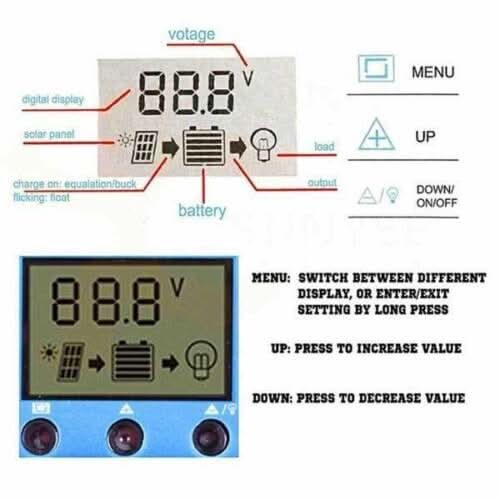

  • One-key setting, auto memory function. digital display,
  • 4-stage PWM charge management.

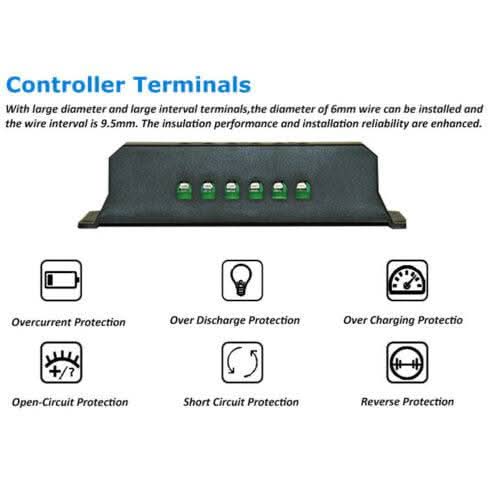

  • There are Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections
  • reverse current protections, low heat productions.

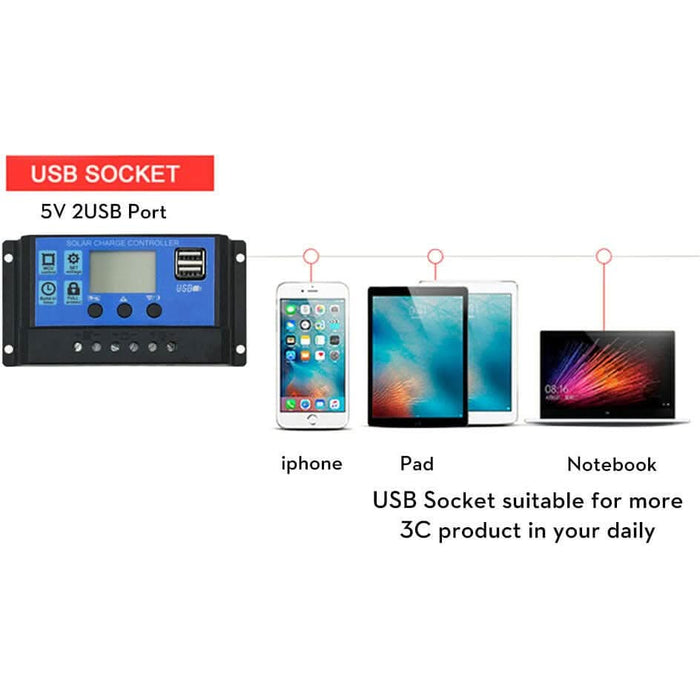

  • With double USB ports charge
  • The Regulator is only suitable for lead acid batteries:OPEN, AGM, GEL
  • Max. PV Input Power:
  • 10A: 130W (12V) 260W (24V)
Safety Instructions:
  • Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
  • The battery cable should be as short as possible to minimize loss.
  • The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
  • make Sure it is not suited for nickel metal hydride, lithium ions or other batteries.
  • The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

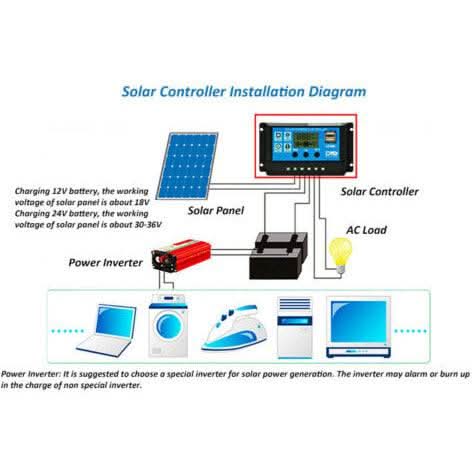

System Connection:
Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery.
Connect the photovoltaic module to the regulator - plus and minus.
Connect the consumer to the charge regulator - plus and minus.

Specification:
  • Rated Voltage: 12V 24V Auto
  • Application: Solar System Controller
  • Current: 10A
  • Size: 148*78*35mm
Package:
  • 1x Solar Panels Battery Charge Controller
  • 1x User Manual
