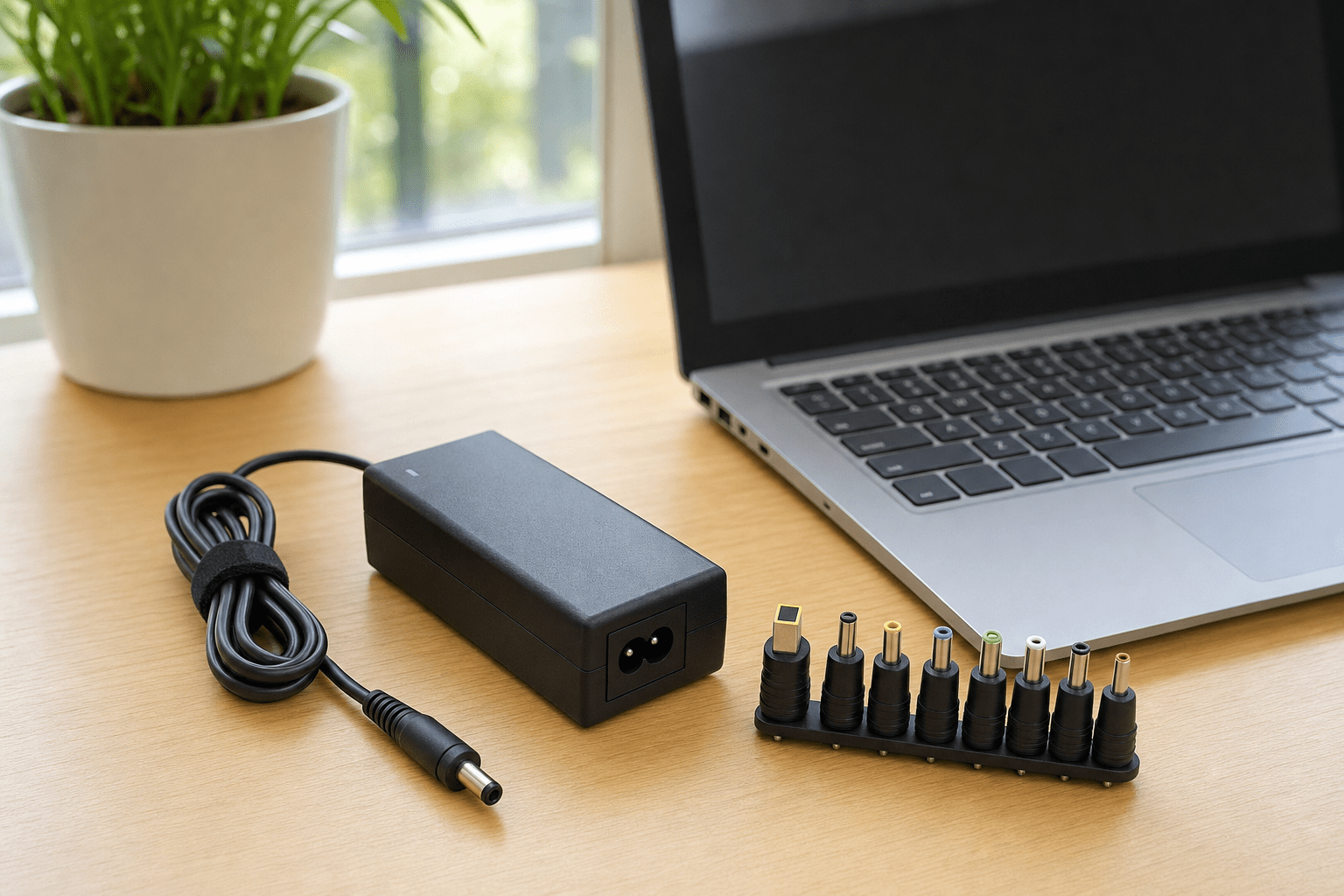

Universal Laptop Charger Guide: Picking the Right Tip, Voltage and Wattage for Asus, Acer, HP, Dell
The right universal laptop charger for your Asus, Acer, HP or Dell notebook comes down to matching three things: output voltage, sufficient wattage, and the correct barrel or pin connector tip — get all three right and a universal charger will power and charge your laptop exactly like the original. Getting any one of them wrong either means the charger won't fit, won't charge properly, or in the case of voltage, could risk damaging the laptop.
Why do Asus, Acer, HP and Dell laptops need different charger tips?
Laptop manufacturers have historically used their own proprietary barrel connector shapes and sizes, even though the underlying charging electronics are similar across brands. That's why a universal charger works as a single unit with a set of swappable tips rather than one fixed plug — you select the tip that matches your laptop's charging port, and the charger's internal circuitry handles the rest. Asus and Acer often use 4.0mm x 1.35mm or 5.5mm x 1.7mm barrel tips depending on the model, HP commonly uses a 4.5mm x 3.0mm or 7.4mm x 5.0mm tip, and Dell frequently uses a 4.5mm x 3.0mm or 7.4mm x 5.0mm tip as well — but always check your specific model, since manufacturers change tip styles across product generations.
What voltage and wattage does your laptop actually need?
Your laptop's original charger label (or a sticker on the underside of the laptop) will list its output voltage — commonly 19V for Asus and Acer, 19.5V for HP and Dell — and its wattage, typically ranging from 45W for ultrabooks to 90W or more for gaming and workstation laptops. A universal charger needs to match the voltage precisely, but wattage only needs to meet or exceed the original rating; a higher-wattage charger will simply supply power on demand without overcharging the laptop, since the laptop's own circuitry regulates how much it draws.
https://cdn.shopify.com/s/files/1/0419/0221/1226/files/batterymate-blog-post13-img2.png?v=1783810334
Common laptop charger specs by brand
| Brand | Typical voltage | Typical wattage range | Common tip size |
|---|---|---|---|
| Asus | 19V | 45W–65W | 4.0mm x 1.35mm / 5.5mm x 2.5mm |
| Acer | 19V | 45W–65W | 5.5mm x 1.7mm / 3.0mm x 1.1mm |
| HP | 19.5V | 45W–90W | 4.5mm x 3.0mm / 7.4mm x 5.0mm |
| Dell | 19.5V | 45W–90W | 4.5mm x 3.0mm / 7.4mm x 5.0mm |
What happens if you use the wrong voltage or tip?
A tip that's the wrong physical size simply won't make contact or won't fit into the port at all, so there's no risk there beyond inconvenience. Voltage is the one to be careful with — a charger supplying meaningfully higher voltage than your laptop is rated for can damage the internal power circuitry, while a charger supplying lower voltage typically won't charge properly or may cause the laptop to run on battery even while plugged in. Always match voltage exactly, and only vary on wattage (equal or higher is fine).
How do you look after a universal laptop charger so it lasts?
The cable is usually the first thing to fail on any laptop charger, universal or original, so avoid sharp bends near the barrel tip and the point where the cable meets the power brick, since repeated flexing in the same spot is what eventually causes internal wire fractures. Wrap the cable loosely rather than tightly coiling it around the brick every time you pack it, and if you notice the cable getting warm during use, unplug it and check for damage before continuing to use it. Storing the charger and its tips in a small pouch also stops the interchangeable tips from getting lost, which is the most common complaint with multi-tip universal chargers.
If your laptop starts charging intermittently or the connection feels loose at the port, check the barrel tip and port for dust or lint build-up first, since this is a simpler fix than assuming the charger itself has failed. A can of compressed air or a soft brush is usually enough to clear it.
What should you check for buying a laptop charger in Australia?
Confirm the charger is built for Australian 230V mains power with a proper local plug rather than needing a separate travel adapter, since some imported chargers are sold with US or UK plug fittings that need an extra adapter to use safely at home. It's also worth checking the cable length suits how you actually work — a short cable is fine at a fixed desk, but if you regularly work from the couch or move between rooms, a longer cable or one with a longer barrel lead saves you from constantly hunting for the nearest power point. Warranty terms are worth a quick check too, since a universal charger covering multiple laptop brands is a purchase you'll likely rely on daily.
Are universal chargers worth it over a brand-specific replacement?
For households or offices with more than one laptop brand, a universal charger with swappable tips means one charger can cover an Asus at the desk and a Dell in the bag, rather than juggling separate chargers and cables. Australian buyers also benefit from universal chargers already being built for local 230V mains power, so there's no separate power adapter needed. We go through more of this decision in our guide on the smart way to replace your laptop charger in Australia.
https://cdn.shopify.com/s/files/1/0419/0221/1226/files/batterymate-blog-post13-img3.png?v=1783810334
If your original charger has died or frayed, our universal AC adapter laptop charger for Asus, Acer, HP, Toshiba and Dell covers the tip sizes and voltages most common across these brands. Browse our full laptop chargers collection if you need a specific wattage or tip not covered by the universal kit.
Frequently asked questions
Can I use a 65W charger on a laptop that came with a 45W charger?
Yes, as long as the voltage matches, a higher-wattage charger is safe to use — your laptop will only draw the power it needs and won't be forced to accept excess wattage. This is actually a common way to future-proof a universal charger purchase if you plan to upgrade laptops later.
How do I find my laptop's exact tip size?
Check the barrel connector on your original charger with a ruler (outer and inner diameter in millimetres), or look up your laptop's model number alongside "charger tip size" for a manufacturer specification. Most universal charger kits include a size guide or physical tip-testing card to help you match it visually.
Is it safe to leave a universal charger plugged in overnight?
Modern laptops and quality chargers include overcharge protection, so leaving it plugged in overnight is generally safe and won't meaningfully degrade battery health if the charger and voltage match correctly. For long-term battery health, occasional full discharge cycles are more relevant than overnight charging habits.
Do universal laptop chargers work with USB-C laptops?
Some universal chargers include USB-C tips or output, but you need to confirm the charger supports USB Power Delivery (PD) at the correct wattage for your laptop, since USB-C charging uses a different negotiation protocol than barrel-tip charging. Always check the specific charger's supported output modes before assuming USB-C compatibility.
